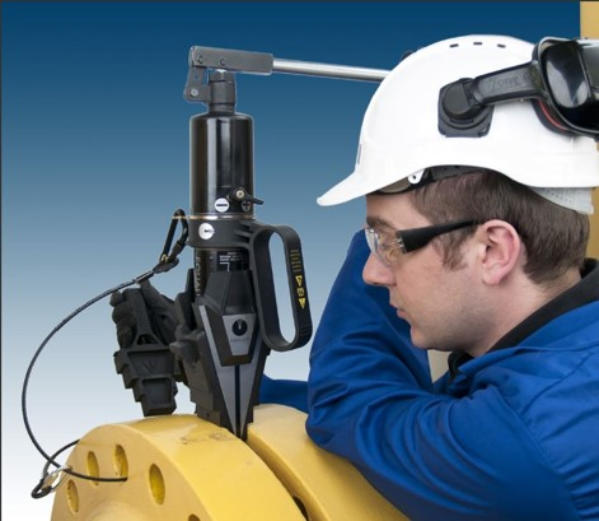

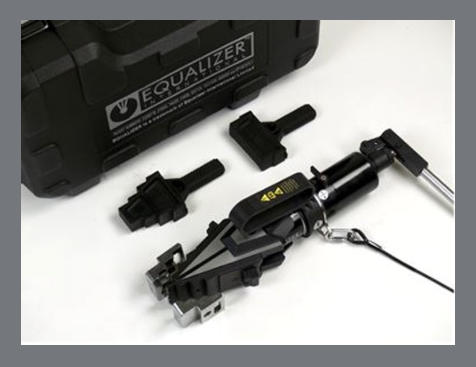

SWi20/25TI Flange Spreader Kit

Flange spreading, Flange aligning, or Flange Closing has long been a problem for maintenance and installation personnel. Unsafe practices, equipment damage, and worker productivity created a need for safe simple tools. We met this need with a line of Flange Alignment Tools, Flange Spreaders, Flange Closing Tools, and Precision Lifting Wedges, and is now the innovative leader in supplying safe Flange Maintenance tools to all types of industry.

Performing work on various types of bolted flanges usually requires the use of tools, from the simple hammer and wedge, or pry bar, to powerful hydraulic operated devices.  Separating flanges to replace gaskets or blinds, aligning flanges prior to bolt-up or, the closing of flanges can be hazardous and time consuming.  We have developed a line of flange maintenance tools to enhance worker safety and productivity.

USER FEATURES  Practical, portable and lightweight  Molded plastic handle for comfort  Revolving handle to aid horizontal or vertical spreading  Offset handle is directly over the center of mass  Removable handle for improved access  Revolving lanyard connection point  Spread indicator markings for clear precise visual progress feedback SAFETY FEATURES  No finger pinch-points  Increased step depth on upper steps  Safety lanyard - 1.0m (39") length  Forged key components for strength and reliability  Fail-safe design - designated cylinder nose seal failure MAINTENANCE FEATURES  Rapid disassembly and assembly  Quick jaw replacement - remove 1 fastener  Quick tip replacement - remove 2 fasteners  Narrow jaw teeth - improved tool wear

CAPABILITIES At 10,000psi ( 700bar ): 20T spread force (1st step) 24T spread force (4th step) 6.0mm - 87.5mm (0.24” - 3.4”) spread force over 4 steps (without stepped blocks) 48.5 - 103.5mm (1.9” - 4.1”) spread over 2 steps (with stepped blocks) 6.0mm - 40.0mm (0.24” - 1.6”) spread using only 1st step
