SWi5TE Flange Spreader Kit

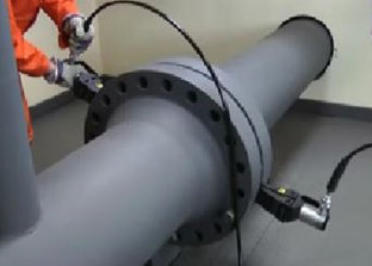

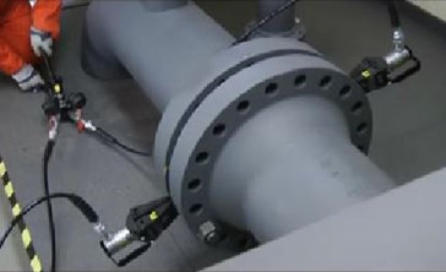

This portable, robust, lightweight hydraulic flange spreader generates a smooth spreading force of 15.5 tons (per wedge
head) from 10,000 psi (700 bar) of hydraulic pressure to safely spread flange joints. The Equalizer™ unique interlocking first step
enhances safety giving secure holding from a small 1/4 inch access gap.
Spreading Force = 15.5 Tons
Standard Kit
1 x SW15TE Flange Spreader Wedgehead
1 x 10,000 psi (700 bar) Hydraulic Hose, 2 m (78.75")
1 x 10,000 psi (700 bar) Hydraulic Cylinder
1 x 10,000 psi (700 bar) HP350S Sealed Hand Pump with Gauge
1 x Safety Block
1 x Pair of Stepped Blocks
1 x Instruction Manual
1 x Plastic Carry Case
Gross Kit Weight 19.5 kg (43 lbs)
Product Code: SW15TESTDSPB
Available in three different kits, The Mini Kit, The Standard Kit, and the most popular, The Maxi Kit

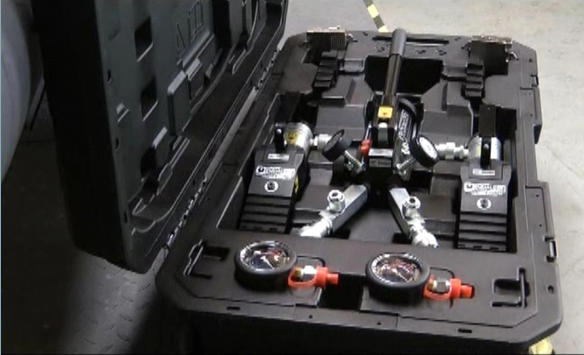

Maxi Kit
2 x SW15TE Flange Spreader Wedgeheads
2 x 10,000 psi (700 bar) Hydraulic Hoses, 2 m (78.75") eachj
2 x 10,000 psi (700 bar) Hydraulic Cylinders
1 x 10,000 psi (700 bar) HP350D Sealed Hand Pump with Gauges
2 x Safety Blocks
2 x Pairs of Stepped Blocks
1 x Instruction Manual
1 x Plaastic Carry Case.
Gross Kit Weight 31 kg (68.3 lbs)
Product Code: SW15TEMAXSPB
Mini Kit
1 x SW15TE Flange Spreader Wedgehead
1 x 10,000 psi (700 bar) Hydraulic Cylinder
1 x Safety Block
1 x Instruction Manual
1 x Cardboard Packaging
Gross Kit Weight 7.5 kg (16.5 lbs)
Product Code: SW15TEMIN
